Trade show booth design, drawn by the shop that builds it

Expert Staging Productions designs custom trade show booths and exhibits, from footprint and traffic flow through 3D renderings and build drawings. Renderings come back in 2 to 3 business days with a revision round included, and they are costed against our own fabrication shop, so what gets approved is what gets built.

Get a quote 702-483-9250
W-2 crew Fully insured 1,000+ events 40+ years combined A supervisor on every job

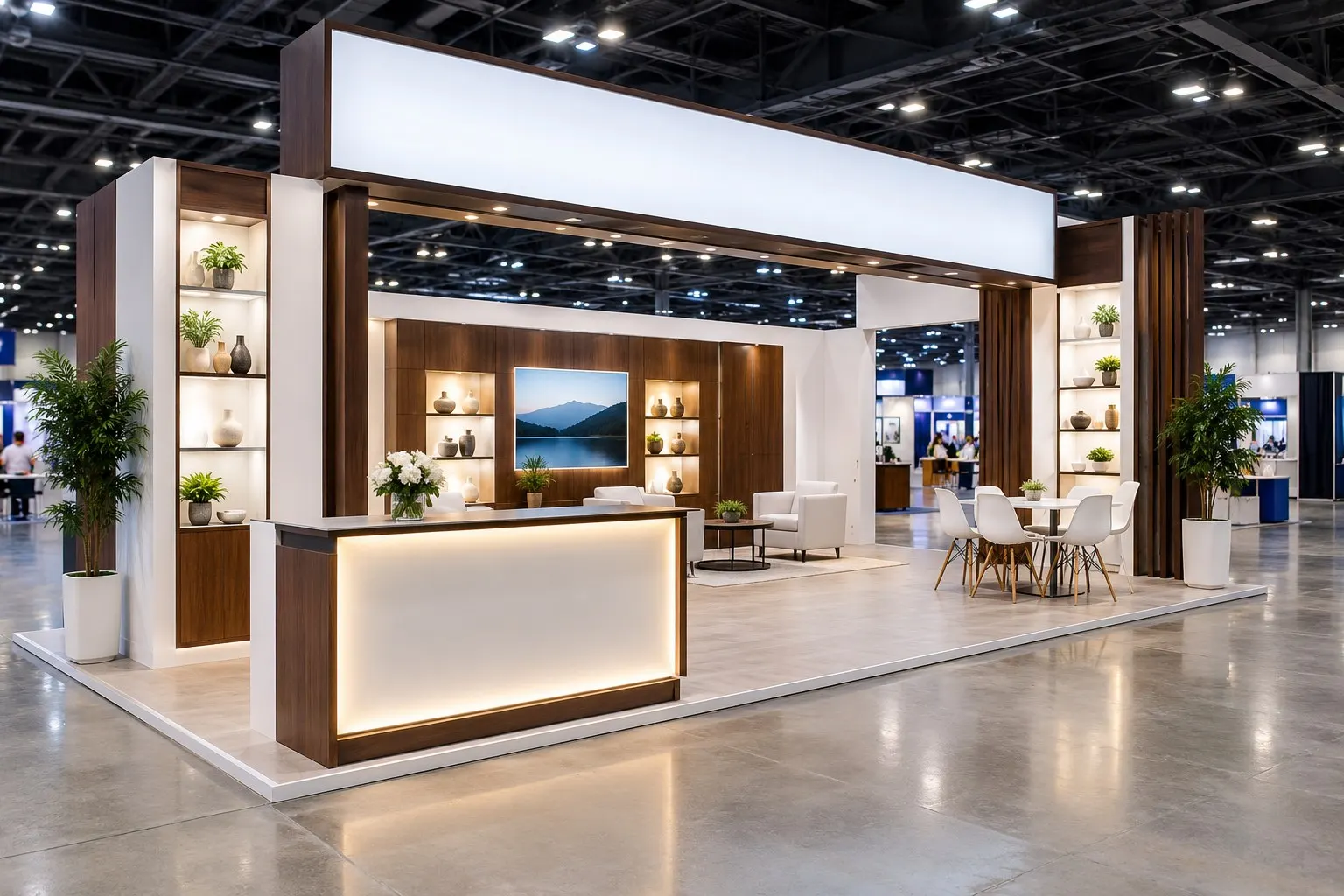

Custom trade show booth with a backlit header and reception counter, designed and built by Expert Staging Productions

What booth design actually decides

A trade show booth design is not a picture of a booth. It is the set of decisions that determine whether the booth works on a crowded floor and whether it can be built for what you have to spend.

Those decisions are the footprint and how traffic moves through it, where the message sits so it reads at a distance and at eye height, what gets built as solid structure versus printed graphic, what the booth has to physically hold such as product, demo units, screens or storage, and how all of it breaks down for freight and comes back for the next show.

Get those right and the visual design has something to sit on. Skip them and you get a rendering that looks good in a deck and causes problems from the moment it reaches a shop floor.

Design to the footprint you actually bought

The single most common expensive mistake is designing for sightlines the booth does not have.

A 10x10 inline is seen from one side by people walking past at an angle. It holds one message and one focal point, and anything else competes with itself.

10x20 buys a second function alongside the message: a demo position, a meeting corner, or genuine storage that is not a curtain with boxes behind it.

20x20 and custom islands are seen from four sides and from across the hall, which changes the structural problem entirely. These are the builds where a hanging element, an elevated structure, or a second level earns its cost, because reach across the room is the thing you are buying.

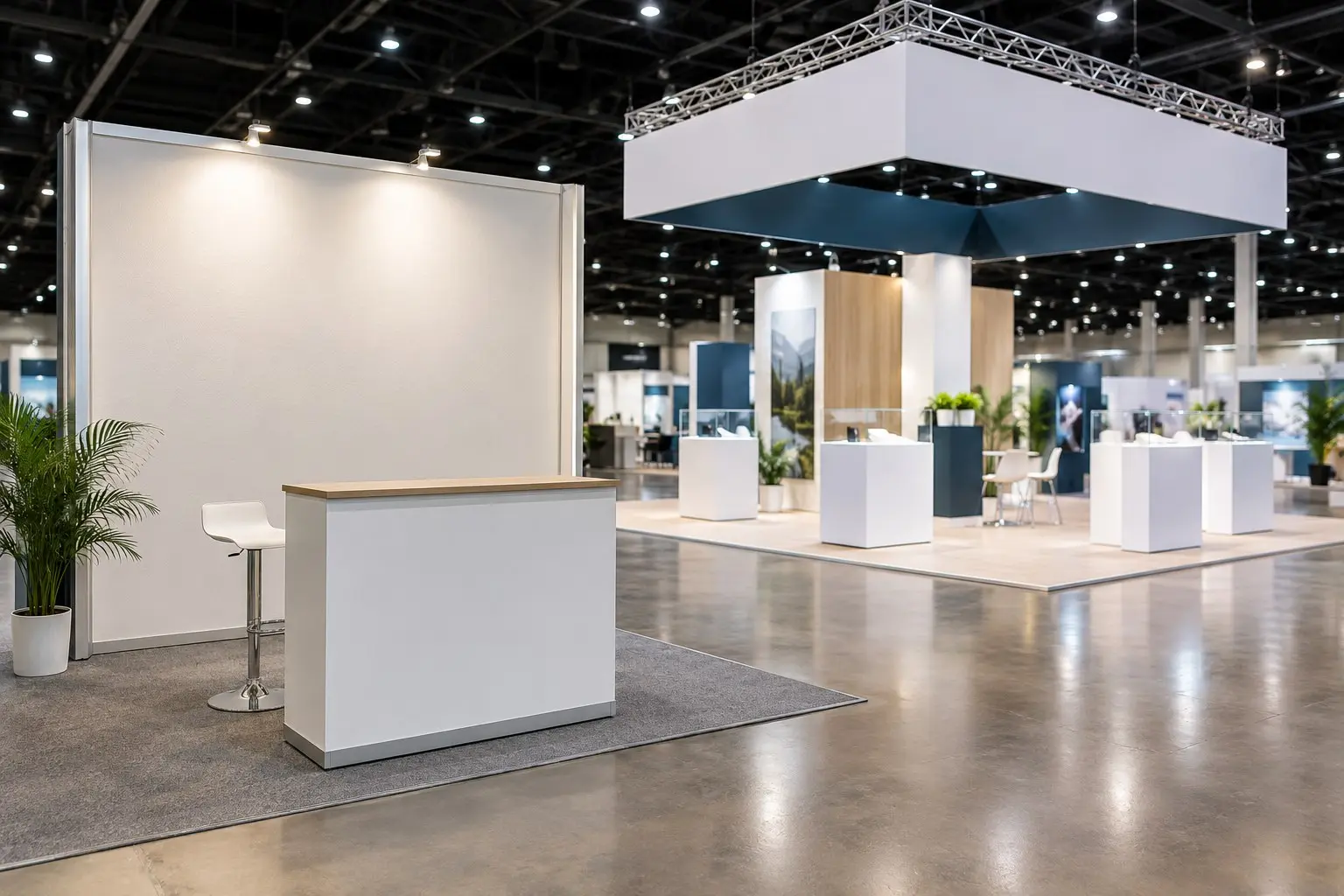

Inline and island trade show booth configurations shown side by side on a convention show floor

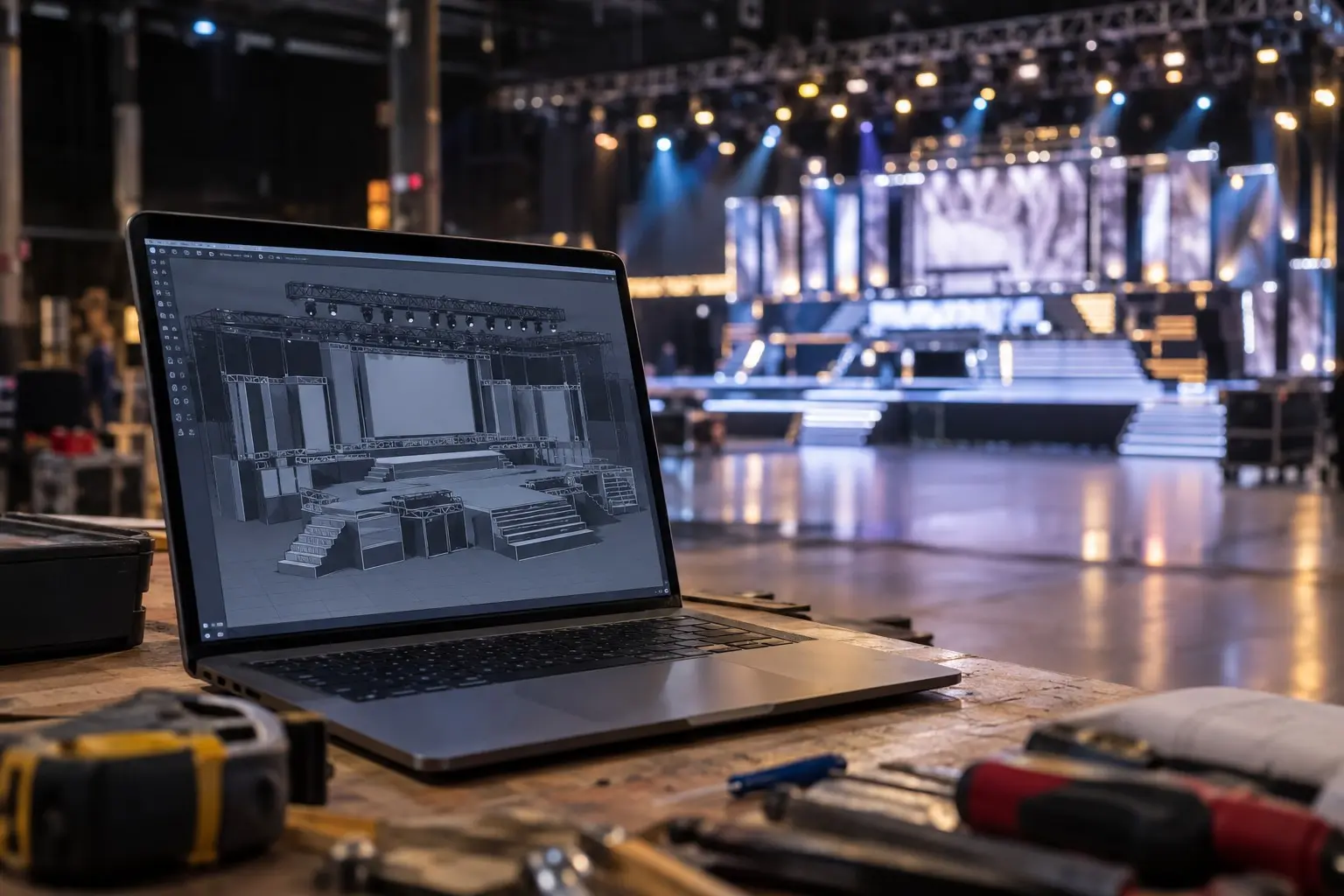

A 3D booth rendering shown alongside the finished build produced from it

From rendering to build drawing

Every booth starts as a 3D rendering, back in 2 to 3 business days with a revision round included. That rendering is what you approve, what your stakeholders sign off on, and what the shop then works from.

The reason the rendering is worth trusting is that it is drawn against a real shop with real machines and real material costs, not as a concept to be bid out later. You can see the same rendering-to-build comparison on completed work on our process page.

W-2 employees. Fully insured. 1,000+ events produced. 40+ years combined experience. A supervisor on every job.

Why design and build belong together

When a booth design is drawn by one company and handed to another to bid, there is a step where someone who did not make the design decisions has to price them. The parts that were never buildable at that number come out after approval, and they usually come out quietly.

What survives that process tends to be the flat, printed, easy parts. What gets cut is the dimensional structure, the finish detail, and the custom element that was the reason the booth was going to work.

ESP designs against its own CNC machines, laser equipment, and carpentry line. The people who will cut and finish the booth are the constraint the design is drawn to, which is why the approved rendering and the delivered booth are the same object. See custom scenery and in-house fabrication for what the shop produces beyond booths.

CNC machine cutting a panel on the Expert Staging Productions fabrication floor

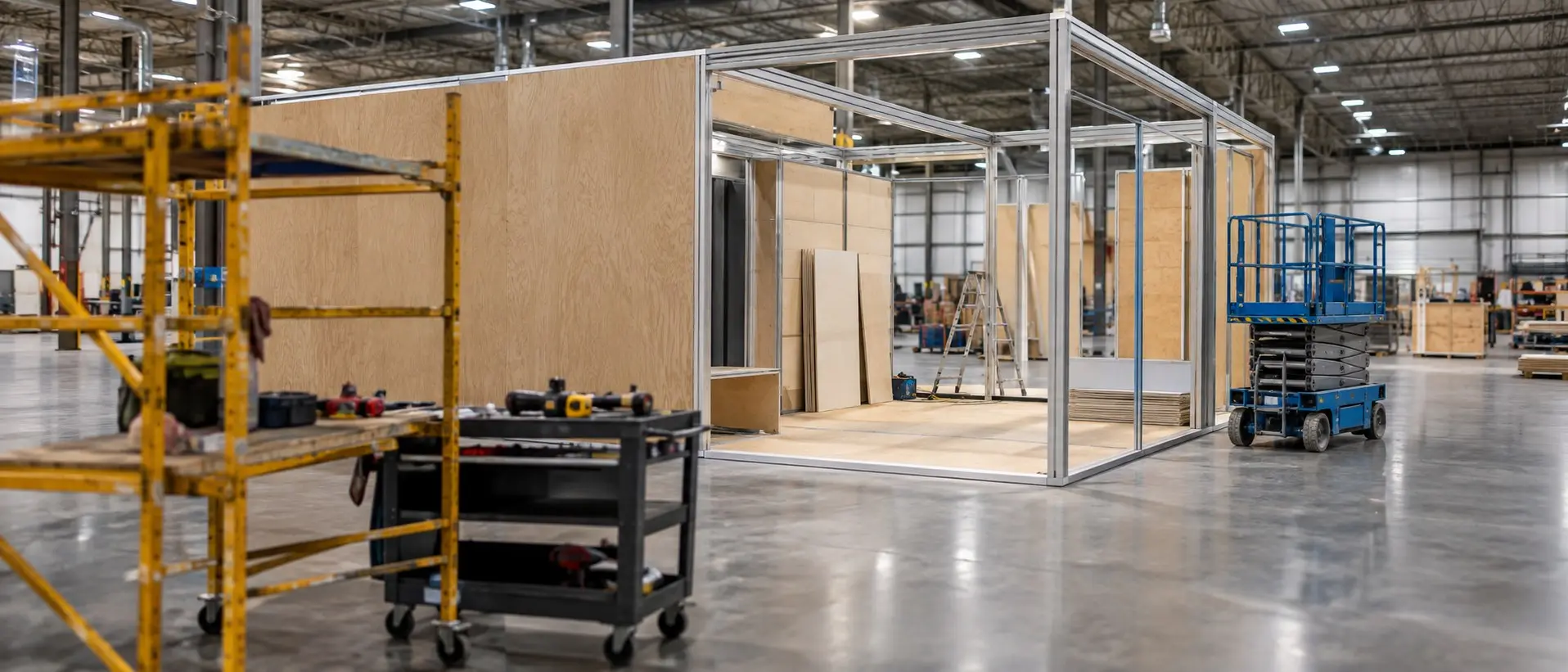

Custom trade show booth under construction during a pre-build fit check in the Expert Staging Productions shop

Design for the second show, not just the first

A booth designed once and used once is the most expensive way to exhibit. Designing for reuse is a set of decisions made early: modular panel sizes that survive freight, graphics that can be swapped without rebuilding structure, connection details a crew can take apart without damaging the finish, and a footprint that can be reconfigured when the next show sells you a different size.

It also means deciding where the booth lives between shows. ESP stores booths between Las Vegas shows, which is what makes the reuse plan real rather than a line in a proposal.

Where the booth gets built

Design travels. Fabrication and installation do not. ESP's shop, crews, and show-floor experience are in Las Vegas, which is where the booths are built and installed, and where knowing the venues, the docks, and the move-in windows is worth more than it sounds.

If your show is at the Las Vegas Convention Center, Mandalay Bay, Venetian Expo, or Caesars Forum, start at trade show booth building in Las Vegas. If you already have a booth and need the rest handled, that is convention exhibitor services.

Start a booth design

Send the show and your footprint, your logo and brand files, and what the booth has to accomplish. A first concept comes back inside the same week. Get a quote online, call 702-483-9250, or email info@expertstagingproductions.com. The shop is at 1045 Palms Airport Dr #110, Las Vegas, NV 89119.

Questions planners ask

What is trade show booth design?
Trade show booth design is the stage between deciding to exhibit and having something to ship. It settles what the booth has to do on the floor, what it looks like, and what it is physically made of: footprint and traffic flow, where the graphics and messaging sit at eye height, how staff and visitors move through the space, what gets built as a solid structure versus printed, and how the whole thing breaks down for transport and reuse. The output is a 3D rendering and a build drawing the shop can actually work from.
How long does trade show booth design take?
Expert Staging Productions turns booth renderings around in 2 to 3 business days, with a revision round included. What moves that timeline is not drawing speed, it is how quickly the decisions behind it get made: final footprint, graphics and logo files, what the booth needs to demonstrate, and whether anything in it has to be built to a show rule. Bring those and design stops being the long pole.
What booth sizes should I design for?
The footprint you bought sets the design, not the other way around. A 10x10 inline is a single message and one clear focal point. A 10x20 gets you a demo area or a meeting corner alongside the message. A 20x20 or a custom island is seen from four sides, which changes everything about how the structure is designed and usually means a hanging or elevated element so it reads from across the hall. Design that ignores the sightlines the footprint actually has is the most common expensive mistake.
Should the same company design and build the booth?
It removes a translation step. When a design gets handed to a separate fabricator to bid, the parts that were never buildable at the price get value-engineered out after approval, which is where booths quietly lose the thing that made them work. Expert Staging Productions designs against its own shop, so the rendering that gets approved is costed by the people who will cut and finish it. Every build runs on a fully insured W-2 crew with a supervisor on every job.
Do you design booths for shows outside Las Vegas?
Design work is not geographically limited, and exhibitors plan from wherever they are based. The fabrication shop, the install crews, and the show-floor experience are in Las Vegas, which is where the booths get built and where ESP knows the venues, the docks, and the move-in windows. For a show at the Las Vegas Convention Center, Mandalay Bay, Venetian Expo, or Caesars Forum, see trade show booth building in Las Vegas.
What do you need from me to start a booth design?
Four things get a rendering moving: the show and your booth number or footprint, your logo and brand files in vector format, what the booth has to accomplish at the show, and anything that has to physically live in it such as a demo unit, product, screen, or storage. Send those to info@expertstagingproductions.com and a first concept comes back inside the same week.

Full question bank and more answers live on the FAQ page.
